38057

9x12mm Standard Preset Torque Wrench 10-100 N·m

38057

9x12mm Standard Preset Torque Wrench 10-100 N·m

9x12mmClick TypeInterchangeable, No Scale Preset, Preset Torque Wrench1~100 N·m

Specifications

Additional information

Model No
Weight
Dimensions
Drive
Main Torque Range
Accuracy
Structure
Type (TR)
Metric Unit
38057
540 g
333 × 33.5 × 297 mm

9x12mm

10~100 N·m

±3%

Click Type

Interchangeable, No Scale Preset, Preset Torque Wrench

1~100 N·m

Description

Description

Related Products

    Model No.Model Name
    3815314x18mm Standard Preset Torque Wrench 40-420 N·m
    3815114x18mm Standard Preset Torque Wrench 20-200 N·m
    3815214x18mm Standard Preset Torque Wrench 30-340 N·m
    380589x12mm Standard Preset Torque Wrench 15-150 N·m
    380569x12mm Standard Preset Torque Wrench 8-85 N·m
    380549x12mm Standard Preset Torque Wrench 3-35 N·m
    380559x12mm Standard Preset Torque Wrench 5-50 N·m
    380539x12mm Standard Preset Torque Wrench 2-25 N·m
    380519x12mm Standard Preset Torque Wrench 1-5 N·m
    380529x12mm Standard Preset Torque Wrench 2-12 N·m

<div class=”rCol”>
<h5>Overview</h5>
<ul>
<li>Torque range:10~100 N·m</li>
<li>Torque Wrench Type: Click, C.W.</li>
<li>Accuracy: ±3%</li>
</ul>

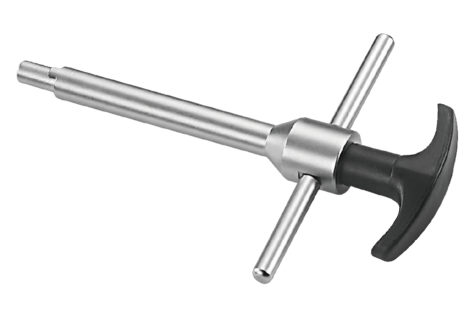

<h5>Setting Key</h5>
<ul>
<li>Iteam number:35096</li>
</ul>
<img class=”alignnone size-full wp-image-6881″ src=”https://wtools.com.tw/wp-content/uploads/2020/07/Setting-Key-35096-e1599014311433.jpg” alt=”” width=”475″ height=”317″ />

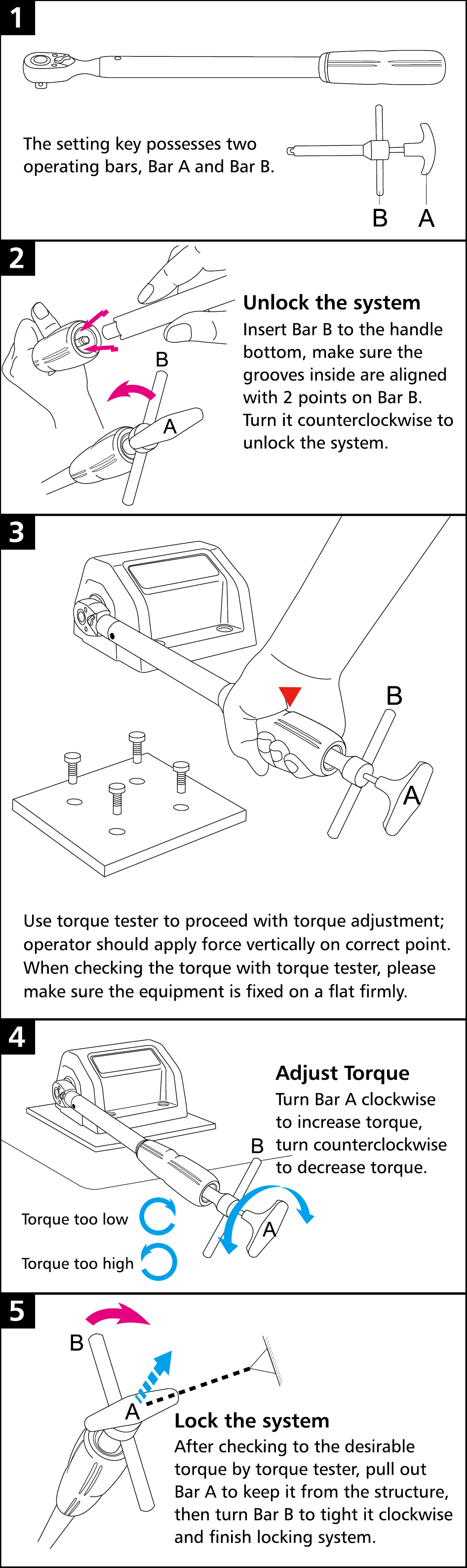

<h5>Operation Manual</h5>
<img class=”alignnone size-full wp-image-6874″ src=”https://wtools.com.tw/wp-content/uploads/2020/07/Preset-torque-wrench.jpg” alt=”” width=”592″ height=”2103″ />

<img class=”alignnone wp-image-4312″ src=”https://wtools.com.tw/wp-content/uploads/2020/04/iso-150×150.gif” alt=”” width=”130″ height=”120″ /><img class=”DIN alignnone wp-image-5496″ src=”https://wtools.com.tw/wp-content/uploads/2020/07/DIN-Logo.gif” alt=”” width=”182″ height=”130″ />

</div>
