11765

3/4″Fx1-1/2″M 4500 N·m Industrial Torque Multiplier

11765

3/4″Fx1-1/2″M 4500 N·m Industrial Torque Multiplier

Industrial Level, H Type3/4"Fx1-1/2"M1:4.8938 N·m4500 N·m2500N·m-4500N·m

Specifications

Additional information

Model No
Weight
Torque Ratio
Gear Ratio
Input Drive
Output Drive
Max.Input Torque
Type (Torque Multiplier)
Max. Output Torque (Range)
Max. Output Torque
Break away Adapter Application
Input Drive * Output Drive
11765
12300 g

1:4.8

1:5.5

3/4"Dr. Female

1-1/2"Dr. Male

938 N·m

Industrial Level, H Type

2500N·m-4500N·m

4500 N·m

938 N·m

3/4"Fx1-1/2"M

Description

Description

Related Products

    Model No.Model Name
    117683/4″Fx1-1/2″M 10000 N·m Industrial Torque Multiplier
    117671/2″Fx1-1/2″M 8000 N·m Industrial Torque Multiplier
    117661/2″Fx1-1/2″M 6000 N·m Industrial Torque Multiplier
    117711/2″Fx1-1/2″M 4500 N·m Industrial Torque Multiplier
    117643/4″Fx1″M 2700 N·m Industrial Torque Multiplier
    117631/2″Fx1″M 2700 N·m Industrial Torque Multiplier
    117621/2″Fx3/4″M 1500 N·m Industrial Torque Multiplier
    117611/2″Fx3/4″M 1000 N·m Industrial Torque Multiplier
Overview
  • Provide bigger radius than W-Type arm.

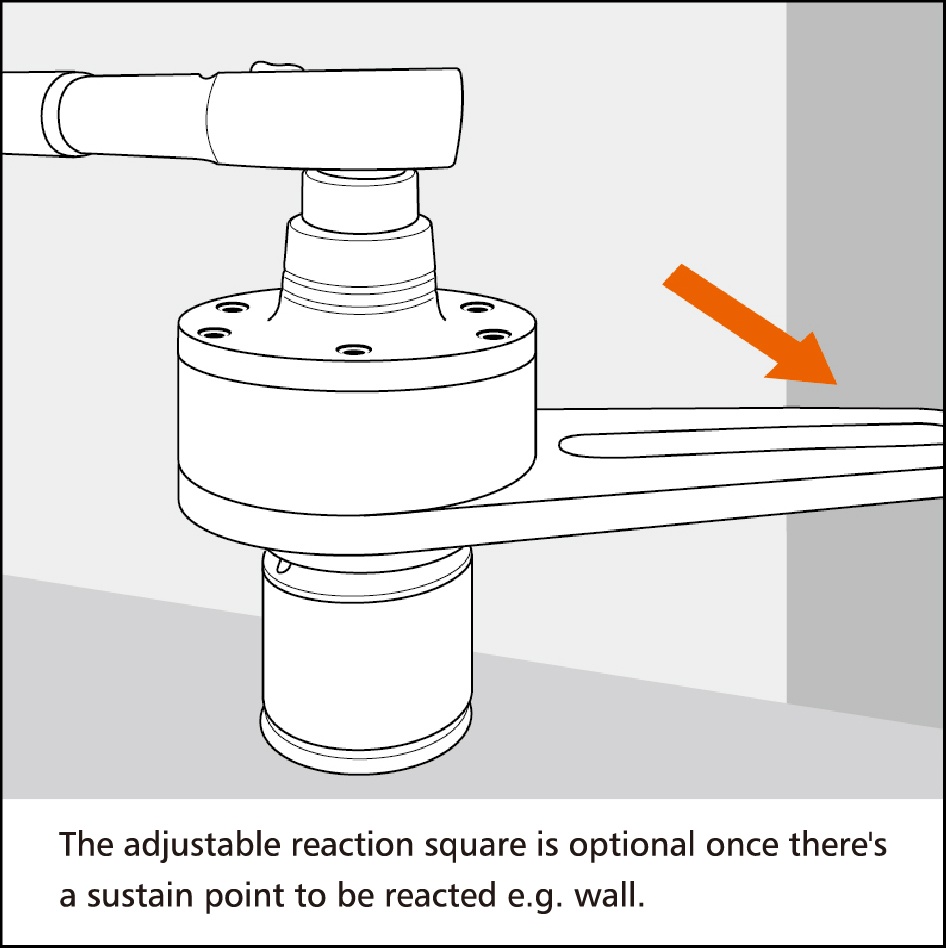

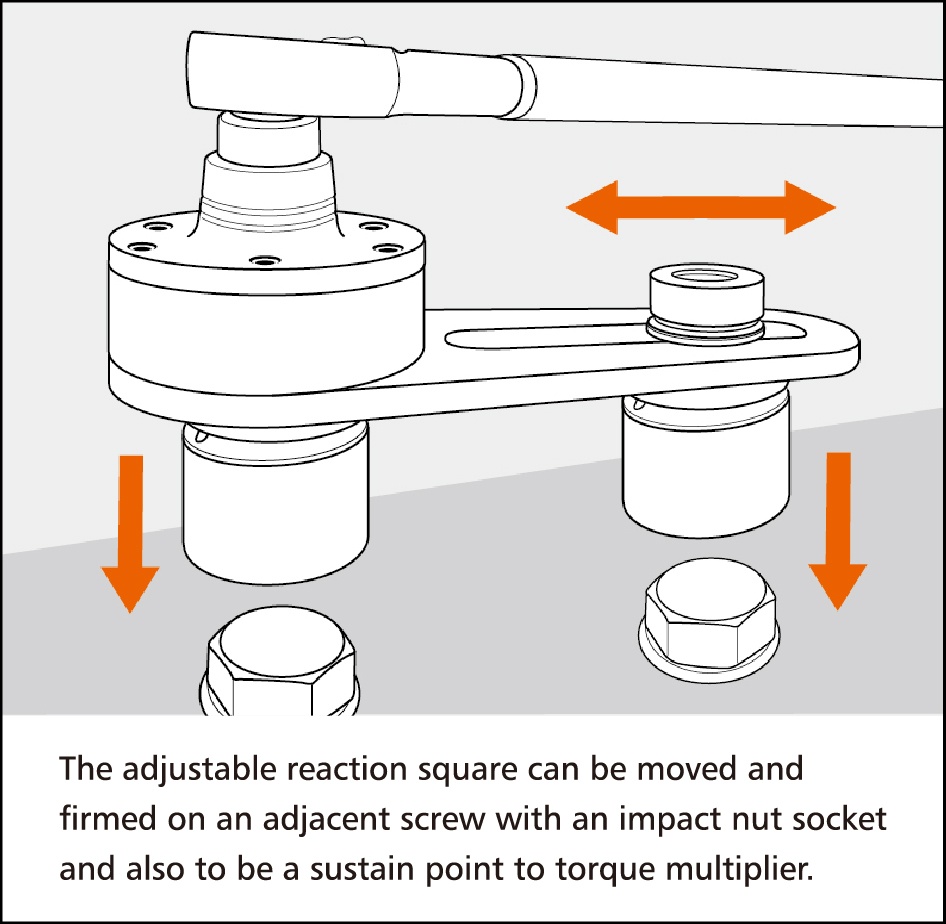

  • The adjustable square drive is ideal for flange screw connections and those reaction points higher than screw tightening.
Apply to Break-away adapter
Operation manual
